Project Nagvaak
Nickel, Vanadium Cobalt, Copper, Silver, and PGMs
The Nagvaak project was first identified in 1972 during airborne geophysical surveys completed by Aquitaine Ltd, performed as a part of a regional exploration program for uranium on the Melville Peninsula.
A 6-km long, 400-meter-wide zone with high grades of a unique combination of elements (vanadium, nickel, copper, cobalt, molybdenum, zinc, silver, platinum group elements and gold).
Aquitaine further investigated the target for its zinc potential, however it was deemed uneconomic and abandoned.
BHP entered into the area exploring the project area for zinc in 1995, and performed additional geophysics, mapping and till sampling; the target was deemed uneconomic in zinc and abandoned again in 1996.
StrategX compiled the assessment reports from previous exploration efforts and identified anomalous values for several commodities other than zinc from historical data. Surface sampling by StrategX confirmed the existence of high grades of other metals that were not previously recognized , now considered extremely important due to the rapidly increasing demand for energy transition metals (critical minerals).
The Nagvaak property represents an excellent addition to the Company’s portfolio on the Melville Peninsula preparing its path on making discoveries that will contribute to providing a source required for the ongoing rapid transition to electric vehicles and renewable energies. StrategX envisions that more targets will continue to be developed as exploration continues on the Melville Peninsula.
From Our March 21st News Release
Click to enlarge.

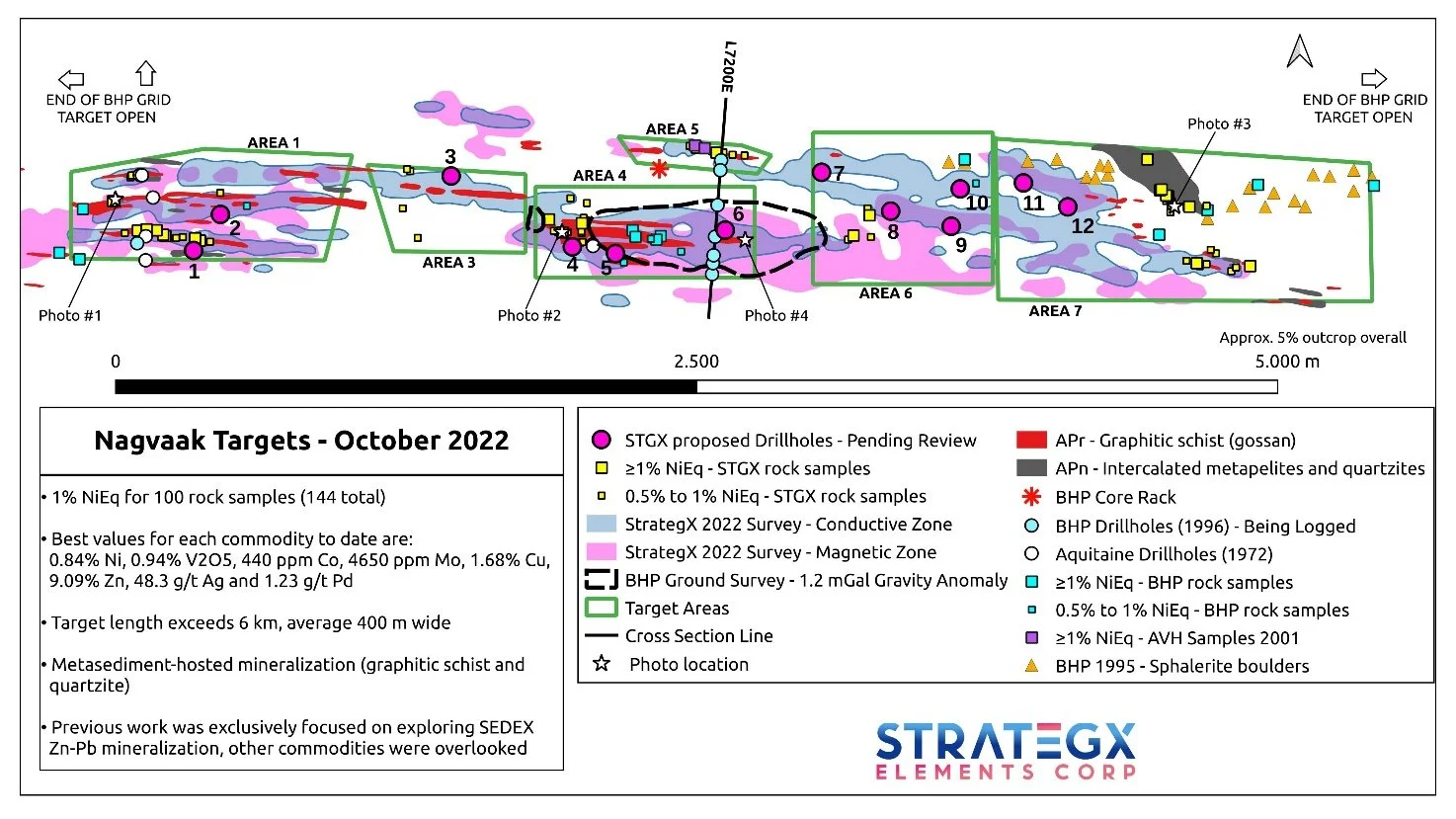

Project Nagvaak Targets Map Overview

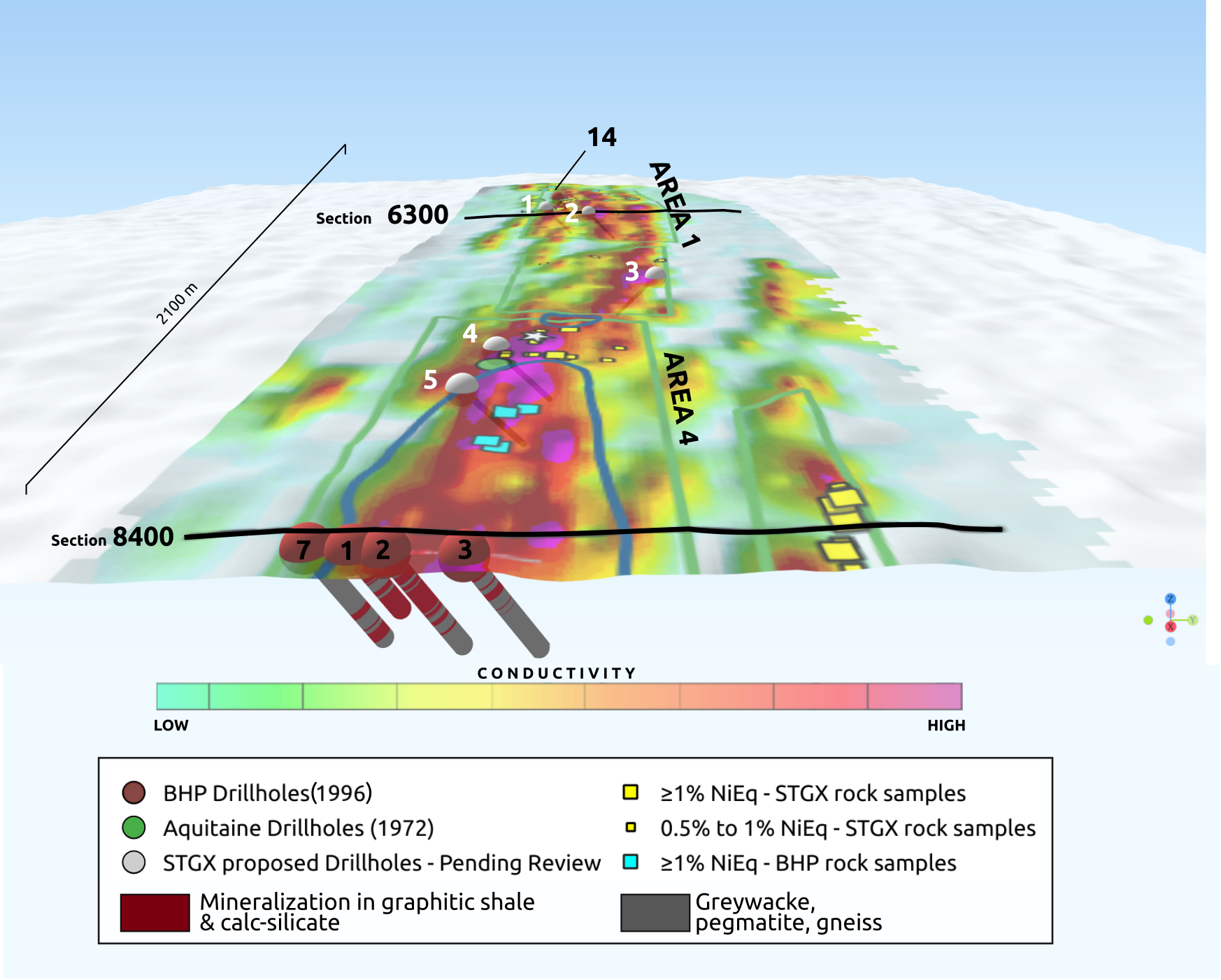

Project Nagvaak 3D Visual
Nagvaak Drill Core Photo Library
Global Graphite Deposit
Table 1: Assay Result (PDF version can be viewed at this link)
Ni | V2O5 | Cu | Mo | Zn | Ag | Au+PGE | C Graphitic | |||
From | To | Description | % | % | % | % | % | g/t | g/t | % |
2.40 | 3.40 | NC-245 | 0.127 | 0.336 | 0.193 | 0.0399 | 0.096 | 9.12 | 0.251 | Assays Pending |
3.40 | 4.40 | NC-246 | 0.169 | 0.330 | 0.091 | 0.0423 | 0.278 | 6.79 | 0.047 | Assays Pending |
4.40 | 5.40 | NC-247 | 0.137 | 0.532 | 0.155 | 0.0449 | 0.092 | 9.68 | 0.068 | Assays Pending |
5.40 | 6.40 | NC-248 | 0.134 | 0.553 | 0.160 | 0.0443 | 0.027 | 9.66 | 0.056 | Assays Pending |
6.40 | 7.40 | NC-249 | 0.266 | 0.409 | 0.156 | 0.0336 | 0.064 | 6.46 | 0.211 | Assays Pending |
7.40 | 8.40 | NC-249B | 0.203 | 0.436 | 0.288 | 0.0376 | 0.083 | 14.20 | 0.074 | Assays Pending |
8.40 | 9.40 | NC-250 | 0.260 | 0.324 | 0.152 | 0.0122 | 0.136 | 8.28 | 0.097 | Assays Pending |
9.40 | 10.40 | NC-251 | 0.150 | 0.138 | 0.069 | 0.0059 | 0.131 | 4.38 | 0.128 | Assays Pending |
10.40 | 11.40 | NC-252 | 0.210 | 0.212 | 0.187 | 0.0035 | 0.021 | 10.60 | 0.099 | Assays Pending |
11.40 | 12.40 | NC-253 | 0.095 | 0.266 | 0.096 | 0.0299 | 0.032 | 5.32 | 0.045 | Assays Pending |
12.40 | 13.40 | NC-254 | 0.027 | 0.178 | 0.018 | 0.0151 | 0.023 | 1.90 | 0.017 | Assays Pending |
13.40 | 14.40 | NC-255 | 0.056 | 0.179 | 0.044 | 0.0036 | 0.064 | 2.86 | 0.040 | Assays Pending |
14.40 | 15.40 | NC-256 | 0.080 | 0.287 | 0.062 | 0.0303 | 0.051 | 3.62 | 0.035 | Assays Pending |
15.40 | 16.40 | NC-257 | 0.136 | 0.260 | 0.110 | 0.0502 | 0.038 | 4.92 | 0.053 | 11.85 |
16.40 | 17.40 | NC-258 | 0.394 | 0.290 | 0.096 | 0.0243 | 0.082 | 5.23 | 0.055 | 10.15 |
17.40 | 18.40 | NC-259 | 0.209 | 0.418 | 0.106 | 0.0362 | 0.640 | 8.28 | 0.051 | 31.0 |
18.40 | 19.40 | NC-260 | 0.289 | 0.468 | 0.137 | 0.0342 | 0.606 | 7.97 | 0.192 | 14.95 |
19.40 | 20.40 | NC-261 | 0.254 | 0.303 | 0.117 | 0.0361 | 3.550 | 6.33 | 0.073 | 23.9 |
20.40 | 21.40 | NC-262 | 0.119 | 0.425 | 0.102 | 0.0412 | 0.640 | 7.20 | 0.065 | 25.3 |
21.40 | 22.40 | NC-263 | 0.297 | 0.414 | 0.081 | 0.0265 | 0.296 | 7.46 | 0.067 | 20.1 |
22.40 | 23.40 | NC-264 | 0.186 | 0.348 | 0.083 | 0.0390 | 0.865 | 7.30 | 0.067 | 23.6 |
23.40 | 24.40 | NC-265 | 0.206 | 0.364 | 0.164 | 0.0226 | 2.420 | 9.51 | 0.181 | 25.2 |
24.40 | 25.40 | NC-266 | 0.187 | 0.338 | 0.075 | 0.0337 | 0.603 | 7.59 | 0.066 | 26.9 |
25.40 | 26.40 | NC-267 | 0.111 | 0.407 | 0.232 | 0.0297 | 0.072 | 10.80 | 0.029 | Assays Pending |
26.40 | 27.40 | NC-268 | 0.243 | 0.414 | 0.127 | 0.0214 | 0.795 | 6.98 | 0.101 | Assays Pending |
27.40 | 28.40 | NC-269 | 0.238 | 0.326 | 0.192 | 0.0283 | 0.020 | 9.45 | 0.112 | Assays Pending |
28.40 | 29.40 | NC-270 | 0.243 | 0.380 | 0.312 | 0.0352 | 0.080 | 12.90 | 0.110 | Assays Pending |
29.40 | 30.40 | NC-271 | 0.334 | 0.427 | 0.176 | 0.0384 | 0.135 | 8.75 | 0.135 | 22.8 |
30.40 | 31.40 | NC-271 | 0.334 | 0.427 | 0.176 | 0.0384 | 0.135 | 8.75 | 0.135 | 22.8 |
31.40 | 32.40 | NC-272 | 0.237 | 0.478 | 0.125 | 0.0490 | 0.087 | 6.80 | 0.115 | 18.1 |
32.40 | 33.40 | NC-273 | 0.187 | 0.498 | 0.139 | 0.0547 | 0.168 | 7.52 | 0.066 | 15.05 |
33.40 | 34.40 | NC-274 | 0.244 | 0.439 | 0.232 | 0.0399 | 1.105 | 12.10 | 0.144 | 25.3 |
34.40 | 35.05 | NC-275 | 0.262 | 0.437 | 0.083 | 0.0389 | 1.010 | 10.15 | 0.089 | 29.6 |
36.00 | 37.00 | NC-276 | 0.285 | 0.303 | 0.083 | 0.0351 | 0.653 | 9.19 | 0.121 | 34.9 |
37.00 | 38.00 | NC-277 | 0.312 | 0.445 | 0.215 | 0.0389 | 2.020 | 12.65 | 0.160 | 18.25 |
38.00 | 39.00 | NC-278 | 0.356 | 0.402 | 0.217 | 0.0367 | 0.461 | 13.65 | 0.080 | 11.15 |
39.00 | 40.00 | NC-279 | 0.543 | 0.356 | 0.235 | 0.0257 | 3.650 | 14.20 | 0.273 | 10.9 |
40.00 | 41.00 | NC-280 | 0.401 | 0.323 | 0.181 | 0.0260 | 2.460 | 12.70 | 0.163 | 11.15 |
41.00 | 42.00 | NC-281 | 0.31 | 0.495 | 0.172 | 0.0323 | 0.882 | 7.73 | 0.111 | Assays Pending |
42.00 | 43.00 | NC-282 | 0.272 | 0.578 | 0.107 | 0.0435 | 0.524 | 5.13 | 0.080 | Assays Pending |
43.00 | 44.00 | NC-283 | 0.135 | 0.600 | 0.078 | 0.0427 | 0.127 | 5.56 | 0.058 | Assays Pending |
44.00 | 45.00 | NC-284 | 0.49 | 0.511 | 0.148 | 0.0454 | 0.470 | 7.43 | 0.118 | Assays Pending |
45.00 | 46.00 | NC-285 | 0.492 | 0.482 | 0.137 | 0.0416 | 1.060 | 7.44 | 0.076 | Assays Pending |
46.00 | 47.00 | NC-286 | 0.365 | 0.491 | 0.110 | 0.0328 | 0.572 | 6.30 | 0.099 | Assays Pending |
47.00 | 48.00 | NC-287 | 0.092 | 0.505 | 0.060 | 0.0218 | 0.131 | 3.96 | 0.057 | Assays Pending |
48.00 | 49.00 | NC-288 | 0.076 | 0.450 | 0.047 | 0.0408 | 0.162 | 2.79 | 0.084 | Assays Pending |
54.80 | 55.80 | NC-289 | 0.060 | 0.146 | 0.027 | 0.0113 | 0.074 | 0.78 | 0.026 | Assays Pending |
55.80 | 56.80 | NC-290 | 0.033 | 0.082 | 0.019 | 0.0061 | 0.034 | 0.54 | 0.018 | Assays Pending |
56.80 | 57.80 | NC-291 | 0.039 | 0.057 | 0.028 | 0.0058 | 0.110 | 0.56 | 0.014 | Assays Pending |
57.80 | 58.80 | NC-292 | 0.086 | 0.257 | 0.057 | 0.0212 | 0.400 | 1.12 | 0.057 | Assays Pending |
58.80 | 59.80 | NC-293 | 0.285 | 0.434 | 0.096 | 0.0444 | 0.486 | 1.40 | 0.104 | Assays Pending |
59.80 | 60.80 | NC-294 | 0.276 | 0.370 | 0.054 | 0.0410 | 1.010 | 1.08 | 0.064 | Assays Pending |
60.8 | 61.8 | NC-295 | 0.187 | 0.491 | 0.137 | 0.0450 | 1.165 | 1.87 | 0.112 | Assays Pending |
61.8 | 62.8 | NC-296 | 0.366 | 0.347 | 0.167 | 0.0235 | 0.045 | 2.65 | 0.092 | Assays Pending |
62.8 | 78.1 | NC-297 | 0.008 | 0.027 | 0.008 | 0.0007 | 0.008 | 0.17 | 0.004 | Assays Pending |
63.8 | 64.4 | NC-298 | 0.005 | 0.015 | 0.003 | 0.0003 | 0.006 | 0.11 | 0.004 | Assays Pending |
Mineralized gossan looking westward
From Our March 7th News Release
Click to enlarge.
Distribution of graphite flake shape vs particle count
Location of DDHs
Plan View of drill hole locations and grab samples
Graphite Flake Purity categorized in 10% increments
Nagvaak Drill Core Photo Library
DDH # |
From (m) |
to (m) |
Total (m) |
Cg (%) |
1 | 15.2 | 27.3 | 12.1 | 17.8 |
Incl | 16.2 | 24.2 | 8 | 22.2 |
1 | 34.3 | 41.2 | 6.9 | 16.5 |
2 | 9.25 | 18.8 | 9.55 | 15.7 |
incl | 16.25 | 18.8 | 2.55 | 27.3 |
14 | 46 | 62 | 16 | 12.2 |
Incl | 49 | 53 | 4 | 21.2 |
Table 1: Drill hole #1 Summary of Graphite Results from Drill Hole Sampling
From Our February 14th News Release
Click to enlarge.
Target Area 4 Plan Map
Project Nagvaak Targets Map Overview

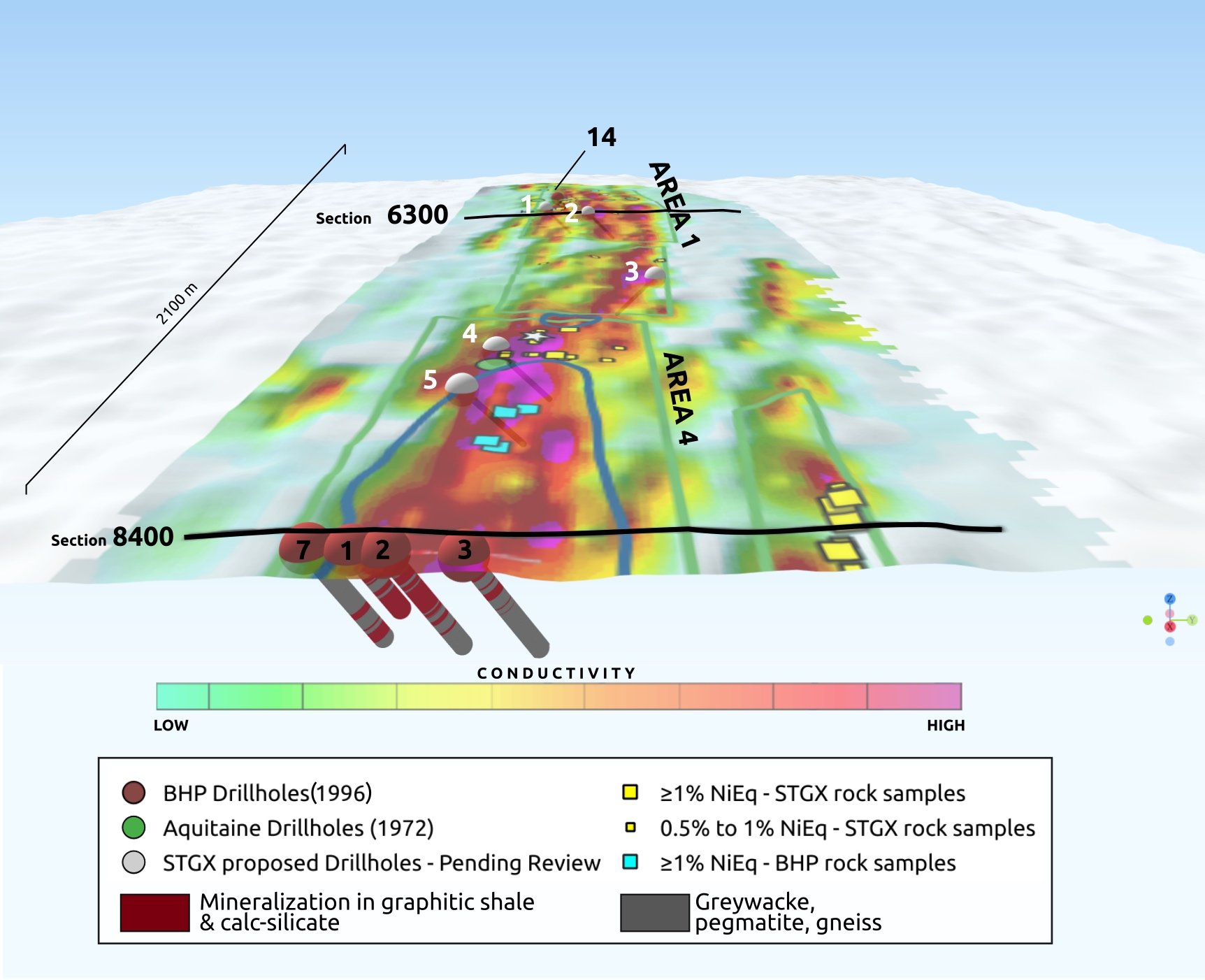

Project Nagvaak 3D Visual
Cross Section L8400 DDH #1
Nagvaak Drill Core Photo Library
Table 1: Drill hole #1 Summary Assay Intervals (EOH 88.1m ) (PDF version can be viewed at this link)
From (m) |
To (m) |
Length (m) |
Ni (%) |
V205 (%) |
Cu (%) |
Mo (%) |
Zn (%) |
Ag (g/t) |
PGE+Au (g/t) |
5.2 | 10.2 | 5.0 | 0.14 | 0.23 | 0.09 | 0.03 | 1.12 | 7.76 | 0.05 |
10.2 | 15.2 | 5.0 | Pending | ||||||
15.2 | 27.3 | 12.1 | 0.10 | 0.32 | 0.09 | 0.03 | 0.72 | 7.44 | 0.04 |
27.3 | 34.3 | 7.0 | Pending | ||||||
34.3 | 39.4 | 5.1 | 0.12 | 0.29 | 0.08 | 0.03 | 0.77 | 4.58 | 0.04 |
42.2 | 47.0 | 4.8 | Pending | ||||||
47.9 | 52.4 | 4.5 | Pending | ||||||
52.4 | 88.1 | 35.7 | 0.29 | 0.36 | 0.15 | 0.04 | 0.73 | 8.26 | 0.13 |
includes | |||||||||
52.4 | 59.3 | 7.9 | 0.13 | 0.34 | 0.07 | 0.04 | 0.44 | 4.53 | 0.09 |
59.3 | 60.7 | 1.4 | Pending | ||||||
65.7 | 74.7 | 9.0 | 0.33 | 0.29 | 0.13 | 0.06 | 1.24 | 5.78 | 0.12 |
74.4 | 78.5 | 4.1 | Pending | ||||||
79.5 | 86.5 | 7.0 | 0.50 | 0.25 | 0.26 | 0.02 | 0.73 | 12.24 | 0.17 |
From (m) |
To (m) |
Length (m) |
Ni (%) |
V205 (%) |
Cu (%) |
Mo (%) |
Zn (%) |
Ag (g/t) |
PGE+Au (g/t) |
9.3 | 22.9 | 13.7 | 0.13 | 0.20 | 0.08 | 0.02 | 0.70 | 6.32 | 0.05 |
22.9 | 25.2 | 2.3 | Pending | ||||||
26.2 | 37.2 | 11.0 | Pending | ||||||
37.2 | 45.0 | 7.8 | 0.13 | 0.25 | 0.08 | 0.02 | 0.54 | 5.60 | 0.05 |
45.0 | 46.7 | 1.7 | Pending | ||||||
46.7 | 85.1 | 38.4 | 0.21 | 0.37 | 0.12 | 0.04 | 0.69 | 6.12 | 0.11 |
includes | |||||||||
50.7 | 62.7 | 12.0 | 0.30 | 0.40 | 0.14 | 0.04 | 0.79 | 7.25 | 0.16 |
65.7 | 78.1 | 13.0 | 0.23 | 0.44 | 0.14 | 0.05 | 1.20 | 7.57 | 0.11 |
85.1 | 90.0 | 5.0 | Pending | ||||||
90.4 | 95.1 | 4.7 | 0.24 | 0.32 | 0.14 | 0.03 | 0.16 | 6.09 | 0.12 |
95.1 | 105.5 | 10.4 | Pending | ||||||
105.5 | 108.1 | 2.6 | 0.20 | 0.53 | 0.08 | 0.03 | 0.09 | 3.61 | 0.11 |
108.1 | 113.6 | 5.6 | Pending | ||||||
113.6 | 119.4 | 5.8 | 0.13 | 0.22 | 0.08 | 0.03 | 0.02 | 3.05 | 0.11 |
Table 2: Drill hole #2 Summary Assay intervals – (EOH 125m) (PDF version can be viewed at this link)
Cross Section L8400 DDH #2
From Our December 7th News Release
Click to enlarge.
Target Area 1 Plan Map
Project Nagvaak Targets Map Overview
Project Nagvaak 3D Visual

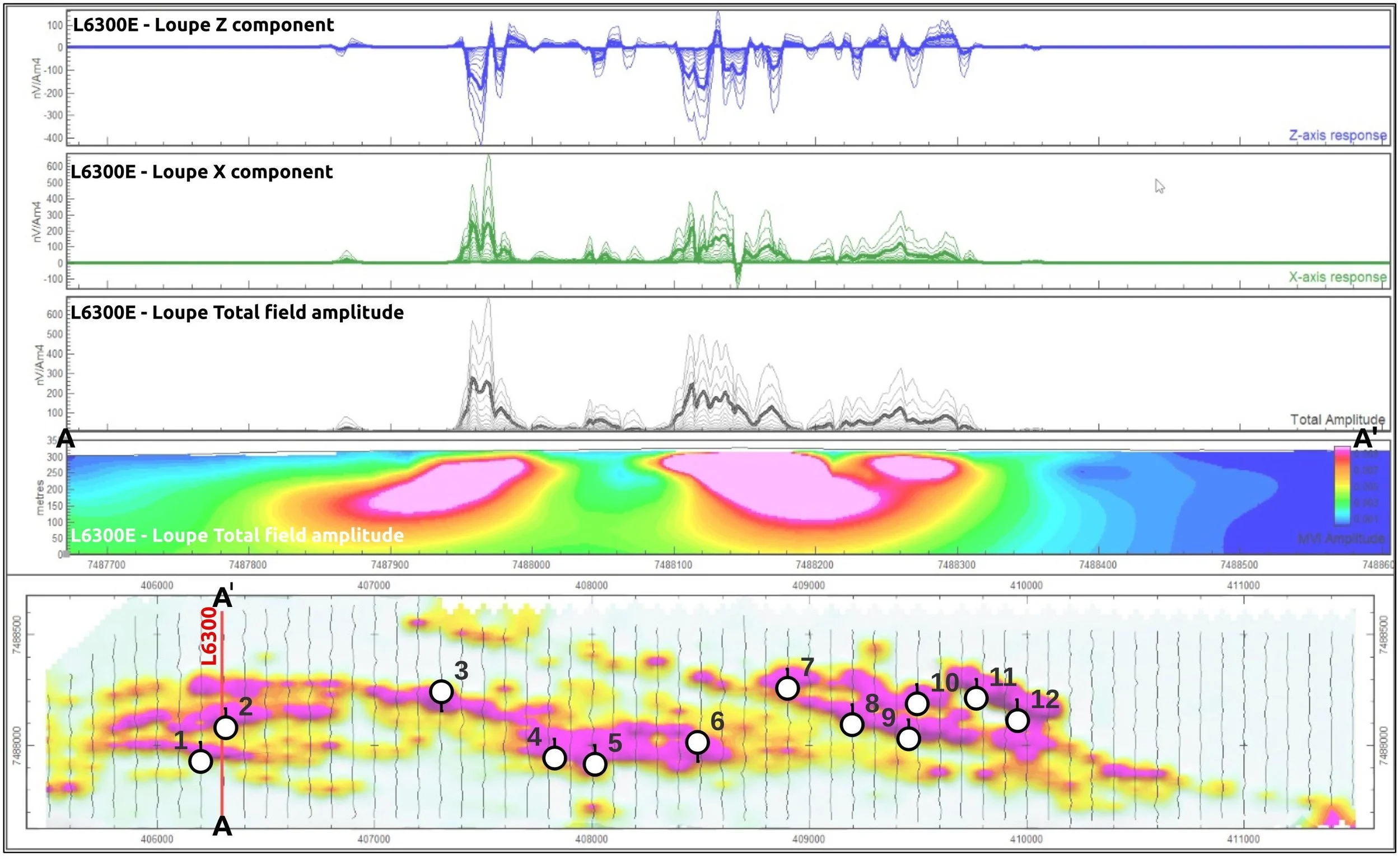

Cross Section L6300
Nagvaak Drill Core Photo Library
Table 1: Drill Hol #14 Summary Assay Intervals (PDF version can be viewed at this link)
From (m) |
To (m) |
Length (m) |
V2O5 (%) |
Ni (%) |
Mo (%) |
Cu (%) |
Zn (%) |
Ag (g/t) |
PGE+Au (g/t) |
CuEq (%) |
NiEq (%) |
V2O5Eq (%) |
27.2 |
85.2 |
58.0 |
0.51 |
0.25 |
0.06 |
0.17 |
0.38 |
8.72 |
0.11 |
2.63 |
0.84 |
1.24 |
includes |
|
|||||||||||
47.0 |
54.0 |
7.0 |
0.38 |
0.24 |
0.04 |
0.17 |
2.13 |
10.84 |
0.07 |
2.81 |
0.90 |
1.32 |
includes |
|
|||||||||||
72.0 |
80.0 |
8.0 |
0.90 |
0.17 |
0.13 |
0.18 |
0.01 |
5.81 |
0.08 |
3.49 |
1.12 |
1.64 |
Notes:
1. The drill core was logged, and 1-metre samples were taken and sent to SRC Labs, Saskatoon. The individual sample results can be seen on the Company’s website and include drill core photos. The quality of the stored core was excellent- intervals were intact.
2. CuEq: Copper equivalent calculation uses copper price of $8,000/tonne. CuEq uses the following formula: CuEq = Cu% + (V2O5% X 2.125) + (Ni% X 3.125) + (Zn% X 0.3625) + (Mo% X 5.8125) + (Ag g/t X 0.0085) + (PGE+Au g/t X 0.622875); NiEq: Nickel equivalent calculation uses nickel price of $25,000/tonne, NiEq uses the following formula: NiEq = Ni% + (V2O5% X 0.6800) + (Cu% X 0.320) + (Zn% X 0.116) + (Mo% X 1.860) + (Ag g/t X 0.00272) + (PGE+Au X 0.19932); and V2O5 equivalent calculation uses price of $17,000/tonne. V2O5Eq uses the following formula: V2O5Eq = V2O5% + (Ni% X 1.4705) + (Zn% X 0.8.6207) + (Mo% X 0.5376) +(Ag g/t X 0.00400) + (PGE+ Au g/t X 0.293118), The other metal prices used: zinc price of $2,900/tonne, molybdenum price of $46,500/tonne, silver price of $21/oz, and PGE+Au uses average price of $1,550/Oz (Pt-Pd-Au). All prices are in US$,.and assumes a 100% metallurgical recovery for all commodities.
Nagvaak DDH 14 - All Assays (PDF version can be viewed at this link)
|
DDH |
NAG96-14 |
|
||||||||||
from interval m |
to interval m |
Sample # |
V % |
V2O5 % |
Ni % |
Mo % |
Cu % |
Zn % |
Ag g/t |
Au g/t |
Pt g/t |
Pd g/t |
PGE+Au g/t |
27.22 |
28 |
NC-131 |
0.136 |
0.243 |
0.499 |
0.028 |
0.116 |
0.870 |
4.63 |
0.026 |
0.000 |
0.079 |
0.105 |
28 |
29 |
NC-132 |
0.290 |
0.519 |
0.219 |
0.040 |
0.070 |
0.027 |
4.26 |
0.016 |
0.000 |
0.062 |
0.078 |
29 |
30 |
NC-133 |
0.344 |
0.615 |
0.183 |
0.038 |
0.085 |
0.012 |
4.74 |
0.010 |
0.012 |
0.044 |
0.066 |
30 |
31 |
NC-134 |
0.290 |
0.519 |
0.154 |
0.039 |
0.103 |
0.020 |
6.46 |
0.008 |
0.215 |
0.041 |
0.264 |
31 |
32 |
NC-135 |
0.219 |
0.392 |
0.446 |
0.023 |
0.147 |
0.011 |
6.65 |
0.009 |
0.009 |
0.035 |
0.053 |
32 |
33 |
NC-136 |
0.312 |
0.558 |
0.116 |
0.054 |
0.073 |
0.023 |
6.34 |
0.011 |
0.009 |
0.025 |
0.045 |
33 |
34 |
NC-137 |
0.344 |
0.615 |
0.092 |
0.103 |
0.092 |
0.212 |
11.30 |
0.014 |
0.016 |
0.022 |
0.052 |
34 |
36 |
NC-138 |
0.318 |
0.569 |
0.232 |
0.059 |
0.133 |
0.506 |
7.71 |
0.014 |
0.020 |
0.022 |
0.056 |
35 |
36 |
NC-139 |
0.327 |
0.585 |
0.191 |
0.067 |
0.110 |
0.119 |
6.68 |
0.017 |
0.027 |
0.053 |
0.097 |
36 |
37 |
NC-140 |
0.199 |
0.356 |
0.250 |
0.036 |
0.128 |
0.174 |
6.48 |
0.028 |
0.007 |
0.103 |
0.138 |
37 |
38 |
NC-141 |
0.237 |
0.424 |
0.516 |
0.028 |
0.275 |
0.122 |
12.20 |
0.026 |
0.000 |
0.112 |
0.138 |
38 |
39 |
NC-142 |
0.172 |
0.308 |
0.342 |
0.024 |
0.203 |
0.078 |
9.52 |
0.051 |
0.000 |
0.131 |
0.182 |
39 |
40 |
NC-143 |
0.072 |
0.129 |
0.302 |
0.009 |
0.140 |
0.024 |
22.60 |
0.160 |
0.000 |
0.058 |
0.218 |
40 |
41 |
NC-144 |
0.298 |
0.533 |
0.331 |
0.062 |
0.247 |
0.179 |
14.20 |
0.051 |
0.000 |
0.083 |
0.134 |
41 |
42 |
NC-145 |
0.192 |
0.343 |
0.315 |
0.043 |
0.200 |
0.060 |
9.50 |
0.015 |
0.000 |
0.071 |
0.086 |
42 |
43 |
NC-146 |
0.132 |
0.236 |
0.257 |
0.017 |
0.262 |
0.097 |
11.00 |
0.008 |
0.000 |
0.263 |
0.271 |
43 |
44 |
NC-147 |
0.152 |
0.272 |
0.387 |
0.034 |
0.302 |
0.127 |
13.60 |
0.015 |
0.000 |
0.112 |
0.127 |
44 |
45 |
NC-148 |
0.227 |
0.406 |
0.259 |
0.039 |
0.156 |
0.060 |
7.00 |
0.007 |
0.000 |
0.053 |
0.060 |
45 |
46 |
NC-149 |
0.262 |
0.469 |
0.245 |
0.034 |
0.174 |
0.339 |
8.29 |
0.021 |
0.031 |
0.119 |
0.171 |
46 |
47 |
NC-150 |
0.278 |
0.497 |
0.269 |
0.070 |
0.112 |
0.341 |
6.96 |
0.018 |
0.054 |
0.129 |
0.201 |
47 |
48 |
NC-151 |
0.306 |
0.547 |
0.217 |
0.054 |
0.182 |
2.060 |
10.60 |
0.047 |
0.027 |
0.057 |
0.131 |
48 |
49 |
NC-152 |
0.243 |
0.435 |
0.258 |
0.047 |
0.170 |
2.750 |
10.60 |
0.027 |
0.035 |
0.069 |
0.131 |
49 |
39.4 |
NC-153 |
0.232 |
0.415 |
0.114 |
0.046 |
0.183 |
1.180 |
11.10 |
0.005 |
0.002 |
0.004 |
0.011 |
50 |
41.2 |
NC-154 |
0.200 |
0.358 |
0.134 |
0.025 |
0.165 |
2.080 |
15.10 |
0.006 |
0.008 |
0.000 |
0.014 |
51 |
42.2 |
NC-155 |
0.179 |
0.320 |
0.146 |
0.022 |
0.205 |
2.680 |
11.90 |
0.017 |
0.012 |
0.022 |
0.051 |
52 |
47.9 |
NC-156 |
0.138 |
0.247 |
0.632 |
0.024 |
0.126 |
2.540 |
7.12 |
0.023 |
0.010 |
0.014 |
0.047 |
53 |
54 |
NC-157 |
0.193 |
0.345 |
0.177 |
0.038 |
0.138 |
1.650 |
9.49 |
0.026 |
0.038 |
0.034 |
0.098 |
54 |
55 |
NC-158 |
0.261 |
0.467 |
0.197 |
0.036 |
0.186 |
0.428 |
12.20 |
0.015 |
0.028 |
0.037 |
0.080 |
55 |
56 |
NC-159 |
0.333 |
0.596 |
0.157 |
0.052 |
0.286 |
0.024 |
14.20 |
0.016 |
0.026 |
0.096 |
0.138 |
56 |
57 |
NC-160 |
0.263 |
0.471 |
0.290 |
0.039 |
0.195 |
0.035 |
9.59 |
0.017 |
0.045 |
0.076 |
0.138 |
57 |
58 |
NC-161 |
0.147 |
0.263 |
0.781 |
0.022 |
0.094 |
0.322 |
5.34 |
0.026 |
0.041 |
0.051 |
0.118 |
58 |
59 |
NC-162 |
0.260 |
0.465 |
0.266 |
0.047 |
0.194 |
0.019 |
10.30 |
0.021 |
0.040 |
0.020 |
0.081 |
59 |
59.3 |
NC-163 |
0.195 |
0.349 |
0.308 |
0.026 |
0.328 |
0.285 |
14.60 |
0.040 |
0.013 |
0.248 |
0.301 |
60 |
61 |
NC-164 |
0.344 |
0.615 |
0.096 |
0.062 |
0.093 |
0.014 |
5.27 |
0.013 |
0.038 |
0.019 |
0.070 |
61 |
62 |
NC-165 |
0.349 |
0.624 |
0.211 |
0.077 |
0.090 |
0.013 |
5.49 |
0.011 |
0.055 |
0.026 |
0.092 |
62 |
63 |
NC-166 |
0.322 |
0.576 |
0.334 |
0.068 |
0.069 |
0.007 |
4.79 |
0.023 |
0.014 |
0.023 |
0.060 |
63 |
64 |
NC-167 |
0.410 |
0.733 |
0.213 |
0.074 |
0.216 |
0.012 |
9.83 |
0.003 |
0.002 |
0.015 |
0.020 |
64 |
65 |
NC-168 |
0.332 |
0.594 |
0.264 |
0.058 |
0.206 |
0.012 |
10.60 |
0.015 |
0.024 |
0.064 |
0.103 |
65 |
66 |
NC-169 |
0.270 |
0.483 |
0.193 |
0.038 |
0.118 |
0.060 |
6.41 |
0.023 |
0.012 |
0.073 |
0.108 |
66 |
67 |
NC-170 |
0.318 |
0.569 |
0.210 |
0.043 |
0.126 |
0.033 |
6.88 |
0.011 |
0.000 |
0.046 |
0.057 |
67 |
68 |
NC-171 |
0.431 |
0.771 |
0.190 |
0.062 |
0.111 |
0.010 |
5.52 |
0.014 |
0.021 |
0.076 |
0.111 |
68 |
69 |
NC-172 |
0.307 |
0.549 |
0.219 |
0.046 |
0.103 |
0.009 |
4.72 |
0.018 |
0.029 |
0.107 |
0.154 |
69 |
70 |
NC-173 |
0.190 |
0.340 |
0.180 |
0.017 |
0.095 |
0.010 |
4.33 |
0.018 |
0.012 |
0.068 |
0.098 |
70 |
71 |
NC-174 |
0.191 |
0.342 |
0.129 |
0.036 |
0.261 |
0.013 |
10.60 |
0.034 |
0.019 |
0.185 |
0.238 |
71 |
72 |
NC-175 |
0.339 |
0.606 |
0.142 |
0.061 |
0.171 |
0.011 |
32.50 |
0.028 |
0.000 |
0.121 |
0.149 |
72 |
73 |
NC-176 |
0.399 |
0.714 |
0.181 |
0.080 |
0.158 |
0.009 |
5.44 |
0.011 |
0.026 |
0.042 |
0.079 |
73 |
74 |
NC-177 |
0.542 |
0.970 |
0.192 |
0.128 |
0.154 |
0.010 |
4.90 |
0.012 |
0.000 |
0.053 |
0.065 |
74 |
75 |
NC-178 |
0.337 |
0.603 |
0.297 |
0.097 |
0.345 |
0.017 |
10.40 |
0.014 |
0.030 |
0.045 |
0.089 |
75 |
76 |
NC-179 |
0.575 |
1.029 |
0.154 |
0.110 |
0.238 |
0.008 |
8.50 |
0.011 |
0.022 |
0.054 |
0.087 |
76 |
77 |
NC-180 |
0.606 |
1.084 |
0.137 |
0.254 |
0.102 |
0.009 |
3.97 |
0.008 |
0.046 |
0.030 |
0.084 |
77 |
78 |
NC-181 |
0.605 |
1.082 |
0.100 |
0.149 |
0.146 |
0.015 |
4.62 |
0.015 |
0.010 |
0.027 |
0.052 |
78 |
79 |
NC-182 |
0.506 |
0.905 |
0.186 |
0.096 |
0.172 |
0.007 |
5.15 |
0.019 |
0.024 |
0.034 |
0.077 |
79 |
80 |
NC-183 |
0.469 |
0.839 |
0.125 |
0.092 |
0.122 |
0.007 |
3.50 |
0.010 |
0.044 |
0.021 |
0.075 |
80 |
81 |
NC-184 |
0.201 |
0.360 |
0.298 |
0.067 |
0.272 |
0.008 |
7.76 |
0.019 |
0.000 |
0.078 |
0.097 |
81 |
82 |
NC-185 |
0.155 |
0.277 |
0.331 |
0.046 |
0.241 |
0.034 |
7.46 |
0.019 |
0.000 |
0.125 |
0.144 |
82 |
83 |
NC-186 |
0.187 |
0.335 |
0.430 |
0.053 |
0.150 |
0.432 |
5.24 |
0.012 |
0.000 |
0.042 |
0.054 |
83 |
84 |
NC-187 |
0.160 |
0.286 |
0.120 |
0.029 |
0.091 |
1.420 |
3.53 |
0.009 |
0.000 |
0.017 |
0.026 |
84 |
85.2 |
NC-188 |
0.295 |
0.528 |
0.227 |
0.069 |
0.206 |
0.376 |
6.02 |
0.011 |
0.070 |
0.064 |
0.145 |
|
0.286 |
0.512 |
0.249 |
0.056 |
0.166 |
0.379 |
8.72 |
0.021 |
0.021 |
0.066 |
0.107 |
||
Averages |
|||||||||||||
V % |
V2O5 % |
Ni % |
Mo % |
Cu % |
Zn % |
Ag g/t |
Au g/t |
Pt g/t |
Pd g/t |
PGE+Au g/t |
Notes:
1. The drill core was logged, and 1-metre samples were taken and sent to SRC Labs, Saskatoon. The individual sample results canbe seen on the Company’s website and include drill core photos. The quality of the stored core was excellent- intervals were intact.
2. CuEq: Copper equivalent calculation uses copper price of $8,000/tonne. CuEq uses the following formula: CuEq = Cu% + (V2O5% X 2.125) + (Ni% X 3.125) + (Zn% X 0.3625) + (Mo% X 5.8125) + (Ag g/t X 0.0085) + (PGE+Au g/t X 0.622875)
NiEq: Nickel equivalent calculation uses nickel price of $25,000/tonne, NiEq uses the following formula: NiEq = Ni% + (V2O5% X 0.6800) + (Cu% X 0.320) + (Zn% X 0.116) + (Mo% X 1.860) + (Ag g/t X 0.00272) + (PGE+Au X 0.19932)).
V2O5 equivalent calculation uses price of $17,000/tonne. V2O5Eq uses the following formula: V2O5Eq = V2O5% + (Ni% X 1.4705) + (Zn% X 0.8.6207) + (Mo% X 0.5376) +(Ag g/t X 0.00400) + (PGE+Au g/t X 0.293118)
The other metal prices used: zinc price of $2,900/tonne, molybdenum price of $46,500/tonne, silver price of $21/oz, and PGE+Au uses average price of $1,550/Oz (Pt-Pd-Au).
All prices are in US$.Assumes a 100% metallurgical recovery for all commodities.
From Our December 1st News Release
Click to enlarge.
Nagvaak 3D Map
Nagvaak Regional Map
Nagvaak Targets - November 2022 Map
Nagvaak Drillhole Summary
Nagvaak Drill Core Photo Library
From Our October News Release
View the full release here.
Loupe TDEM survey on Nagvaak Property
Nagvaak Targets - October 2022 Map
Gossan, sampled in 2022, assays pending
3D model showing geophysical anomalies with the gossans (in white) and high NiEq values in rock samples (box symbols) on surface and the location of proposed drill holes
Top 100 of 144 Rock Samples
Click tables to enlarge.
*Note: PGE’s + Au are not included in the NiEq* calculation. Includes nickel price of US$22,000/tonne, V2O5 price of US$21,000/tonne, Cu price of US$9,500/tonne, Zn price of US$3,500/tonne, Mo price of US$44,000/tonne, and Ag price of US$23/oz. NiEq* formula uses the following formula: NiEq* = Ni % + (V205% X 0.9545) + (Cu % X 0.4318) + (Zn % X 0.1591) + (Mo % X 2.000) + (Ag Oz X 0.0010). The NiEq* calculation will be lower if the metallurgical recovery of the metals is below 100% and will be determined when a resource deposit is defined. Note: Sample #’s beginning with B were taken by BHP Minerals in 1996, and #’s without a letter and beginning with A are by StrategX
Photos taken in Target Areas 1, 4, and 7
Click photos to enlarge.
Targets - July 2022
Click photo to enlarge.
